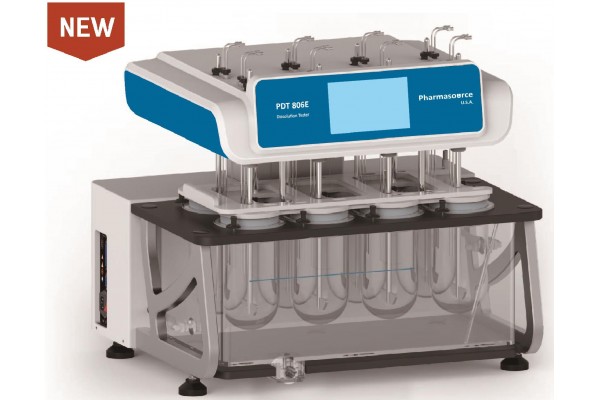

PDT 806E Eight Positions Dissolution Tester
- Product Description
PDT 806E Eight Positions Dissolution Tester
Product Descriptions :
The Pharmasource dissolution testers with innovation technology, specific designed, touch screen control panel and latest apparatus for the pharmaceutical testing, quality control, education, industrial analysis, research and method developments follow by USP, BP, EP, JP, CP and others international pharmacopoeias specifications and guidelines.
Our PDT 806E with 8 positions universal dissolution tester, that is user can use six vessels to the six shafts and additional two vessels for put in the reference standard, blank or media during the instrument running. Also user can operate 8 stations vessels full run at a time for times saving. The tester head operated by automated lifted up-down by front touch screen control panel for easy to bath clean and change the paddles, baskets and vessels.
The PDT 806E dissolution tester manufactured with advanced microprocessor controlled systems for the accurate results, automatic setting data stored and smooth touch screen control operations. All the potential data and functional parameter are real-time display on screen like sampling interval, date, running time, temperature and rotation speed. The new features includes with data management systems, long time experiment data saved and perform audit trail.
The built-in circulator heating systems make fast warm of the water bath with high precision temperature controller and integrated temperature sensor, hardware and software ensure data measurement and control methods. And the apparatus made with special quality components for low power consumption.
Typical Applications :
The tablet dissolution testing is a one of the most important test during the method developments and manufacturing of solid dosage forms in the pharmaceutical industries.
Pharmasource dissolution testers are universal use in the field of pharmaceutical testing, education, industrial analysis and applications in the tablets, capsules, pills, pellets, solid dosage forms and various pharmaceutical products manufacturing quality control, medicine research and developments.
:
:
PDT 806E
:
8 Stations
:
1000ml with water level marked [option]
:
Eight clear view glass vessels with temperature resistance prototype
:
8 Positions active
:
Ambient 10~45°C
:
±0.3°C [resolution ±0.1°C]
:
Precision controller with integrated sensor
:
1 minute to 99 hours [auto shutdown and pre-heating function]
:
±0.2%
:
15~299rpm [adjustable]
:
±2rpm [resolution ±1rpm]
:
Precision motor controller
:
Touch Screen LCD with actual working status
:
USP-I for Basket and USP-II for Paddle
:
USP 1, 2, 5, 6
:
Eight S.S baskets and eight paddles [teflon coating option]
:
±0.5mm
:
±1.0mm
:
Heater with circulation pump
:
Clear view with temperature control water bath
:
Date, time, temperature and auto calibration remind of expiration
:
Name, password, user account login and test run records
:
Automatic centering position
:
60dB
:
Continuous 45 hours
:
Temperature 5~38°C and Humidity 80%
:
Built-in self-checking systems for any error
:
USB port export or real-time data printer [option]
:
GLP, GMP by international standard and requirements
:
Overheating protection and high temperature alarm
:
220V, 50Hz operations
Features & Advantages :
◊ Latest design, advanced technology, reliable performance for dissolution testing.
◊ Manufacturing follow by USP, BP, EP, JP, CP and others pharmacopoeias specifications and guidelines.
◊ Microprocessor control systems for time, temperature, speed, sampling interval and test time counting.◊ USP method I for basket and USP method II for paddle supported.
◊ Perform audit trail, data management systems and long time experiment data saved function
◊ Automatic shutdown and pre-heating function by timer setting.
◊ Large LCD touch screen with actual working status display.
◊ High lifted structures for easy to bath clean and change the paddles, shafts and vessels.
◊ 8 stations active drive head with eight positions 1000ml vessel water bath.
◊ 6 sample, two additional vessels for blank, standard, media or user can full run of 8 vessels.◊ Accurate results, test data stored, time counting, present temperature and rotation speed display.
◊ Built-in self-checking systems for any error.
◊ Precision temperature controller with integrated sensor.
◊ Automatic vessels centering position and low vibration.
◊ Smooth drive head, high precision speed controller and low power consumption.
◊ Date, time, temperature and calibration mode.
◊ Automatic lift up-down by front touch screen control panel.◊ Overheat protection and high temperature alarm.
◊ Touch control user friendly interface, easy to operations.
◊ Fast warming precision controlled heating systems.
◊ Easy to calibration of time, temperature and rpm.
◊ Automatically remind of calibration and expiration date.◊ Continuous operations more than 45 hours capability.
◊ Compliance with GLP, GMP by international pharmacopoeias standard and requirements.Options and Accessories :
Pharmasource 1000ml clear view glass vessels with temperature resistance and water level marked.
1000ml amber color glass vessels with temperature resistance and water level marked.
Calibration tools with certificates complete in set box.
USP calibration kits with certificates [tablets and reference standard]User Documentations :
OM > Operational Manuals
IQ > Installation Qualification
OQ > Operational Qualification
PQ > Performance Qualification
