Disintegration Tester

Product Description

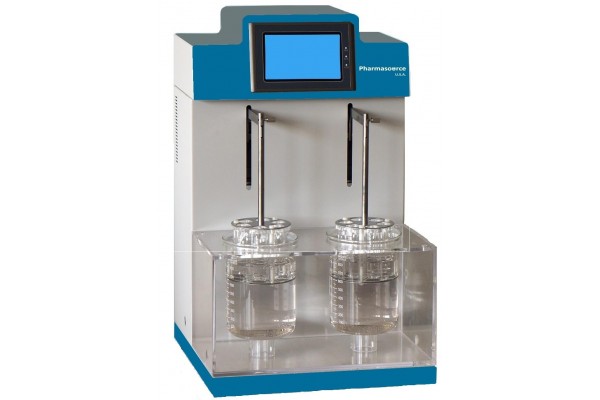

PDT 201 Two Stations Disintegration Tester

Product Descriptions :
The Pharmasource disintegration testers perfect designed and precision instruments for disintegration time limit test in the pharmaceutical tablets, capsules, pills, suppositories and other solid dosage medications compliance with as per USP, BP, EP, JP, CP regulations and others international pharmacopoeias specifications and requirements.

Our PDT 201 with two stations disintegration tester and two baskets assembly systems. The user can operate two stations at a time for times saving or use single basket hold in six tablets or capsules in the six tubes and another basket take out for clean or storage. The tester is high head design for easy to bath clean and change the baskets or beakers. The each basket able to six samples running at a time or two baskets individually working for independently disintegrated at the same time.

The instruments assemble with advanced microprocessor controls monitoring parameter for disintegration testing process, results, times, temperature, programs setting and operations. The tester with automatic warm-up, start-stop touch control functions and provides overheat temperature protection with safety alarm systems. The dual programs systems as standard and advanced test controls techniques. The standard test controlled is default temperature and user setting times. The advance test controlled systems is automatic function and user can setting parameter of date, times, temperature like year, month, day, hour, minutes and seconds. After the run times end instruments automatically stop and lifts to the highest positions for user easy access in the baskets and beakers.

The disintegration test time limit, water bath heater temperature and programs setting in the front touch screen colour LCD control panel. After the disintegration testing user can easily lift out the baskets from the beakers for see the results and performance. The temperature sensor deep in the water bath and continuously transfer the information to real-time display monitor of heater circulation water bath temperature and time limit.

Typical Applications :
The Pharmasource tablets disintegration testers are regular use in the field of pharmaceutical testing, education, industrial analysis and applications in the tablets, capsules, suppositories, pills, pellets, solid dosage forms and various pharmaceutical products manufacturing quality control, research and developments as per compliance with USP, BP, EP, JP, CP regulations and others international pharmacopoeias requirements and specifications.



Technical Specifications	:
Model	:	PDT 201
Active head	:	2 Stations
Beakers capacity	:	1000ml with water level marked
Number of beakers	:	Two clear view glass beakers with temperature resistance prototype
Number of drive lifts	:	2 Positions active
Complete in systems	:	Two beakers, baskets and twelve disintegration tubes
Temperature range	:	Ambient 10~45°C
Temperature accuracy	:	±0.3°C [resolution ±0.01°C]
Temperature control	:	Precision controller with integrated sensor
Timer setting range	:	1 minute to 23:59 hour [auto shutdown and pre-heating function]
Timer accuracy	:	±0.5 minute
Lifts frequency	:	30 to 32 times per minutes in the baskets
Stroke length	:	55mm
Length accuracy	:	±1mm
Counting	:	Lifts up-down in the baskets and number display on LCD screen
Accuracy of count	:	99.99%
Lifts controlled	:	Precision motor controller
Display	:	Touch Screen LCD with actual working status
Heating systems	:	800W
Water bath	:	Clear view with temperature control water bath
Setting parameter	:	Date, times and temperature
Baskets centering	:	Automatic centering position
Noise level	:	<60dB
Maximum running times	:	Continuous 23:59 hours
Operating conditions	:	Temperature 5~38°C and Humidity 80%
Instruments self-checking	:	Built-in self-checking systems for any error
Data output	:	Real-time data printer [option]
Complies	:	GLP, GMP by international standard and requirements
Safety performance	:	Overheating protection and high temperature alarm
Power requirements	:	220V, 50Hz operations [110V, 60Hz option]

Features & Advantages :
◊ Compliance with USP, BP, EP, JP, CP and others pharmacopoeias specifications and guidelines.
◊ Perfect design, advanced technology, reliable performance for disintegration testing.
◊ Microprocessor control systems for time, temperature, lifts up-down and test times counting.

◊ Automatic warm-up, shutdown and pre-heating function.
◊ Overheat protection and high temperature safety alarm systems.

◊ LCD touch screen with actual working status.
◊ High lifted structures for easy to bath clean, change the baskets and beakers.
◊ 2 stations active drive lifts with two positions 1000ml beakers water bath.
◊ 2 sample, two baskets individually working and each basket independently disintegrated.

◊ Accurate results, test data stored, time counting, present temperature and lifts up-down display.

◊ Built-in self-checking systems for any error.

◊ Easy to calibration of time, temperature and lifts frequency.

◊ Precision temperature controller with integrated sensor.

◊ Automatic baskets centering position and easy basket movement.

◊ Smooth drive lifts, high precision motor controller and low power consumption.

◊ Setting programs and parameter with Date, times and temperature.
◊ Capability of continuous operations 23:59 hours.
◊ Automatic lifts up-down by front touch screen control panel programmable setting.
◊ User friendly interface and easy to operations.
◊ Fast warming precision controlled heating systems.
◊ Compliance with GLP, GMP by international pharmacopoeias standard and requirements.

Options and Accessories :
Pharmasource 1000ml clear glass beakers with temperature resistance and water level marked.
Calibration tools with certificates complete in set box.



User Documentations :
Operational Manuals [in English]
IQ > Installation Qualification
OQ > Operational Qualification
PQ > Performance Qualification
