Friability Tester

Product Description

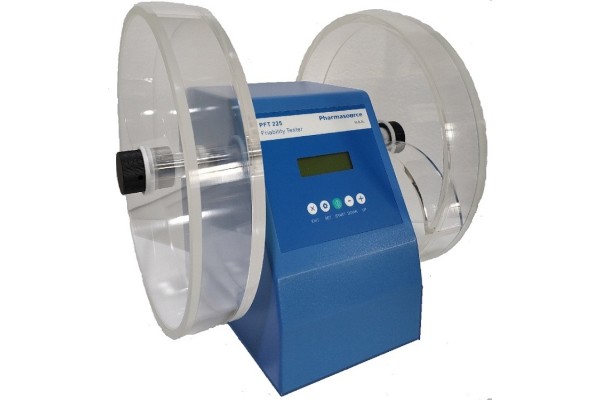

PFT 225 Two Drums Friability Tester

Product Descriptions :
The Pharmasource tablets friability testers with specific designed and precision instruments for physical intensity testing in the pharmaceutical tablets, capsules, pills, suppositories and others solid dosage medications compliance with as per USP, BP, EP, JP, CP regulations and others international pharmacopoeias specifications and requirements.


Our PFT 225 dual drums friability testers with perfect measurements functions for testing of physical strength from non-coated tablets, capsules during the productions, packaging, storage and transportation. The tester can operate manual, automatic or continuous for friability testing. And samples tested by individually with manually place on the apparatus sample drums. The friability tester with two round drums structures for easy to samples place, tested, powders clean and place the new sample for test.


The instruments assemble with microprocessor controls and advanced monitoring systems for precise testing of abrasion resistance, stability, crushing strength and others intensity from non-coated tablets and capsules with accurate results. The automatic self-checking systems for any error and powerful drive head with high precision motor controller for drums rotation. The tester with automated start-stop by front keypad control panel and provides overload measurements protection with safety systems.



The setting parameter of fixed rotation speed, timer, start, stop and resetting functions by front key LCD control panel with user friendly interface, easy to operations, auto adjusting centering drums position and fast replacement. The automatic calibration systems by external calibrated meters with smooth motorized samples test techniques and low power consumption. The precision speed controller with integrated sensors continuously transfer the information to real-time display monitor of testing results and reliable performance.



Typical Applications :
The Pharmasource tablets friability testers are regular use in the field of pharmaceutical testing, quality control, research and developments, education, industrial analysis and applications in the tablets, capsules, suppositories, pills, solid dosage forms and checking of physical strength from non-coated tablets, capsules during the productions, packaging, storage and transportation as per compliance with USP, BP, EP, JP, CP regulations and others international pharmacopoeias requirements and specifications.



Technical Specifications

:



Model

:

PFT 225

Drums assembly

:

2 positions

Number of drums

:

Two clear view drums

Drums size

:

Internal Diameter 286mm, depth 39mm and tablets drop height 156mm

Drums setting

:

One Left and one right hand site

Operating options

:

Manual, automatic or continuous

Rotation Speed

:

25 rpm fixed per minute without modification

Accuracy range

:

±1 rpm per minute

Speed controls

:

Precision motor controller

Timer setting

:

0-9:59:59 [ adjustable ]

Calibration technique

:

External calibrated meters

Display

:

LCD with actual working status

Settings parameter

:

Fixed rotation speed, timer, start, stop and resetting functions

Drums centering

:

Automated centering position

Noise level

:

<60dB

Maximum running times

:

Continuous 23:59 hours

Operating conditions

:

Temperature 5~38°C and Humidity 80%

Instruments self-checking

:

Automatic self-checking systems for any error

Data output

:

No option

Power consumption

:

20W

Complies

:

GLP, GMP by international pharmacopoeias standard and requirements.

Safety performance

:

Overload protection with safety systems

Power requirements

:

220V, 50Hz operations [110V, 60Hz option]


Features & Advantages :
◊ Compliance with USP, BP, EP, JP, CP and others pharmacopoeias specifications and guidelines.
◊ Specific design, advanced technology, reliable performance for tablets physical intensity testing.
◊ Microprocessor controls systems for precise testing with accurate results.
◊ Round drums structures for easy to samples place, tested and powders clean.
◊ Ideal for dual drums measurements and testing of physical strength in non-coated tablets and capsules.
◊ LCD screen with actual working status.

◊ Automatic test data calculations, analysis and results measurements.

◊ Precision speed controller with integrated sensor.
◊ Automated start-stop by front key control functions.

◊ Easy to calibration by external calibrated meters.

◊ Individually samples tested by manually place on the sample drums.

◊ Auto adjusting centering drums position and fast replacement.
◊ Motorized smooth samples test techniques and low power consumption.

◊ Setting programs with fixed rotation speed, timer, start, stop and resetting functions

◊ Automatic self-checking systems for any error.
◊ Overload measurements protection with safety systems.
◊ Capability of continuous operations 23:59 hours.
◊ Reset programs and automatically save settings parameter.
◊ User friendly interface and easy to operations.

◊ Compliance with GLP, GMP by international pharmacopoeias standard and requirements.


Options and Accessories :
Clear view friability drums

Knobs and screws
Calibrated meters with certificates



User Documentations :

OM > Operational Manuals
IQ   > Installation Qualification
OQ > Operational Qualification
PQ  > Performance Qualification
