Tablets Hardness Tester

Product Description

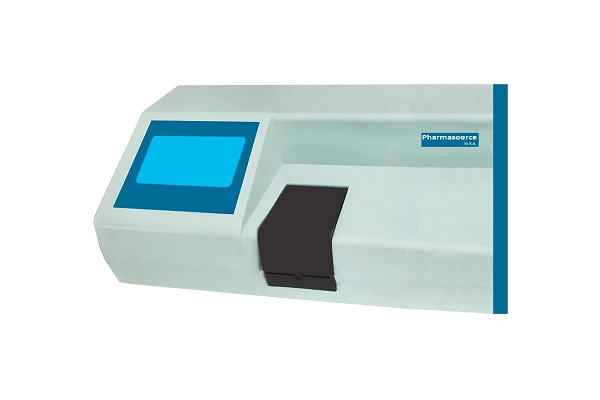

PHT 350 / 350P Tablets Hardness Tester

Product Descriptions :
The Pharmasource tablets hardness testers with perfect designed and precision instruments for hardness and diameter test in the pharmaceutical tablets, capsules, pills, suppositories and others solid dosage medications compliance with as per USP, BP, EP, JP, CP regulations and others international pharmacopoeias specifications and requirements.

Our PHT 350 series dual range hardness and diameter testers with precise measurements functional options. The tester can operate manual, automatic, continuous for hardness and diameter testing. And each sample tested by individually with manually place on the apparatus sample jaw. The hardness tester with wide jaw structures for easy to samples place, tested, powders clean and place the new sample for test.


The instruments assemble with advanced microprocessor controls and versatile monitoring systems for fast testing of hardness, diameter with accurate results. The automatic self-checking systems for any error and forceful drive jaw with high precision motor controller. The tester with automated start-stop by touch control functions and provides over range measurements protection with safety systems.



The setting parameter of date, times, test functions and calibration date by front touch screen colour LCD control panel with user friendly interface, easy to operations, auto adjusting centering jaw position and smooth reciprocating movement. The automatic calibration systems by external calibrated weight with fast motorized precision samples test techniques and low power consumption. And precision pressure sensor with integrated controller continuously transfer the information to real-time display monitor of testing results and reliable performance.



Typical Applications :
The Pharmasource tablets hardness testers are regular use in the field of pharmaceutical testing, education, industrial analysis and applications in the tablets, capsules, suppositories, pills, pellets, solid dosage forms and various pharmaceutical products manufacturing quality control, research and developments as per compliance with USP, BP, EP, JP, CP regulations and others international pharmacopoeias requirements and specifications.



Technical Specifications

:



Model

:

PHT 350 [ 350P with data printer ]

Measuring systems

:

Dual range measurements, hardness and diameter

Functional options

:

Manual, automatic and continuous

Hardness measure range

:

0-350N

Accuracy limit

:

± 0.5 %

Resolution

:

0.1N

Diameter measure range

:

2-25mm

Accuracy limit

:

± 0.5 %

Resolution

:

0.1N

Pressure controls

:

Precision pressure sensor with integrated controller

Samples tested

:

Fast motorized

Calibration technique

:

External calibrated weight

Reset programs

:

Automatically settings and save parameter

Display

:

Touch screen LCD with actual working status

Settings parameter

:

Date, times, test functions and calibration date

Jaw centering

:

Automated centering position

Noise level

:

<60dB

Maximum running times

:

Continuous 23:59 hours

Operating conditions

:

Temperature 5~38°C and Humidity 80%

Instruments self-checking

:

Automatic self-checking systems for any error

Data output

:

Real-time data printer [option]

Printed parameters

:

Date, times, test report and calibration date

Complies

:

GLP, GMP by international pharmacopoeias standard and requirements.

Safety performance

:

Over range protection with safety systems

Power requirements

:

220V, 50Hz operations [110V, 60Hz option]


Features & Advantages :
◊ Compliance with USP, BP, EP, JP, CP and others pharmacopoeias specifications and guidelines.
◊ Perfect design, advanced technology, reliable performance for hardness and diameter testing.
◊ Microprocessor controls systems for fast testing of hardness, diameter with accurate results.
◊ Wide jaw structures for easy to samples place, tested and powders clean.
◊ Ideal for dual range measurements in hardness and diameter.
◊ LCD touch screen with actual working status.

◊ Automatic test data calculations, analysis and results measurements.

◊ Precision pressure sensor with integrated controller.
◊ Automated start-stop by touch control functions.

◊ Easy to calibration by external calibrated weight.

◊ Individually sample tested by manually place on the sample jaw.

◊ Auto adjusting jaw centering position and easy to reciprocating movement.
◊ Fast motorized precision samples test techniques and low power consumption.

◊ Setting programs with Date, times, test functions and calibration date.

◊ Automatic self-checking systems for any error.
◊ Over range measurements protection with safety systems.
◊ Capability of continuous operations 23:59 hours.
◊ Reset programs and automatically save settings parameter.
◊ User friendly interface and easy to operations.

◊ Compliance with GLP, GMP by international pharmacopoeias standard and requirements.


Options and Accessories :
Data printer for sample tests report print
Calibration weight with certificates





User Documentations :
Operational Manuals [in English]
IQ > Installation Qualification
OQ > Operational Qualification
PQ > Performance Qualification
