8 Position Dissolution Tester

Product Description

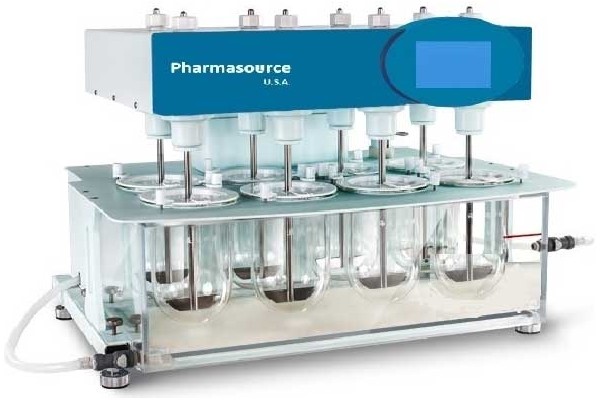

PDT 806 Eight Positions Dissolution Tester

Product Descriptions :

The Pharmasource dissolution testers with innovation technology, specific designed, touch screen control panel and latest apparatus for the pharmaceutical testing, quality control, education, industrial analysis, research and method developments follow by USP, BP, EP, JP, CP and others international pharmacopoeias specifications and guidelines.



Our PDT 806 with 8 positions universal dissolution tester, that is user can use six vessels to the six shafts and additional two vessels for put in the reference standard, blank or media during the instrument running. Also user can operate 8 stations vessel full run at a time for times saving. The tester head operated by automated lifted up-down by front touch screen control panel for easy to bath clean and change the paddles, basket and vessels.



The PDT 806 dissolution tester manufactured with advanced microprocessor controlled systems for the accurate results, automatic setting data stored and smooth touch screen control operations. All the potential data and functional parameter are real-time display on screen like sampling interval, date, running time, temperature and rotation speed.



The circulator heating systems make fast warm of the water bath with high precision temperature controller and integrated temperature sensor, hardware and software ensure data measurement and control method. And the apparatus made with special quality components for low power consumption.



Typical Applications :

The tablet dissolution testing is a one of the most important test during the method developments and manufacturing of solid dosage forms in the pharmaceutical industries.



Pharmasource dissolution testers are universal use in the field of pharmaceutical testing, education, industrial analysis and applications in the tablets, capsules, pills, pellets, solid dosage forms and various pharmaceutical products manufacturing quality control, medicine research and developments.





Technical Specifications

:





Model

:

PDT 806



Active head

:

8 stations



Vessels capacity

:

1000ml with water level marked [option]



Number of vessels

:

Eight clear view glass vessels with temperature resistance prototype

Number of drive shafts

:

8 Positions Active



Temperature range

:

Ambient 10~50°C



Temperature accuracy

:

±0.3°C [resolution ±0.1°C]



Temperature control

:

Precision controller with integrated sensor



Timer setting range

:

1 minute to 99 hour [auto shutdown and pre-heating function]



Timer accuracy

:

±0.2%



Operating speed control

:

15~299rpm [adjustable]



Rotation speed accuracy

:

±4rpm [resolution ±1rpm]



Speed controller

:

Precision motor controller



Display

:

Touch Screen LCD with actual working status



Method operated

:

USP-I for Basket and USP-II for Paddle



Method supported

:

USP 1, 2, 5, 6



Paddle and baskets

:

Eight basket and eight paddles



Paddle wobbles

:

±0.5mm



Basket wobbles

:

±1mm



Heating systems

:

800W with circulation pump



Water bath

:

Clear view with temperature control water bath



Calibration parameter

:

Date, time, temperature and auto calibration remind of expiration



User function

:

Name, password, user account login and test run records



Vessels centering

:

Automatic centering position



Noise level

:

60dB



Maximum running times

:

Continuous 45 hours



Operating conditions

:

Temperature 5~38°C and Humidity 80%



Instruments self-checking

:

Built-in self-checking systems for any error



Data output

:

Real-time data printer [option]



Complies

:

GLP, GMP by international standard and requirements



Safety

:

Overheating protection and high temperature alarm



Power requirements

:

220V, 50Hz operations





Features & Advantages :
◊ Latest design, advanced technology, reliable performance for dissolution testing.
◊ Manufacturing follow by USP, BP, EP, JP, CP and others pharmacopoeias specifications and guidelines.
◊ Microprocessor control systems for time, temperature, speed, sampling interval and test time counting.

◊ USP method I for basket and USP method II for paddle supported.
◊ Automatic shutdown and pre-heating function by timer setting.
◊ LCD touch screen with actual working status display.
◊ High lifted structures for easy to bath clean and change the paddles, shafts and vessels.
◊ 8 stations active drive head with eight positions 1000ml vessel water bath.
◊ 6 sample, two additional vessels for blank, standard, media or user can full run of 8 vessels.

◊ Accurate results, test data stored, time counting, present temperature and rotation speed display.

◊ Built-in self-checking systems for any error.

◊ Precision temperature controller with integrated sensor.

◊ Automatic vessels centering position and low vibration.

◊ Smooth drive head, high precision speed controller and low power consumption.

◊ Date, time, temperature and auto calibration remind function.
◊ Automatic lift up-down by front touch screen control panel.

◊ Overheat protection and high temperature alarm.
◊ Easy to calibration of time, temperature and rpm.
◊ User friendly interface, easy to operations.
◊ Fast warming precision controlled heating systems.
◊ Automatically remind of calibration and expiration date.

◊ Continuous operations more 45 hours capability.
◊ Compliance with GLP, GMP by international pharmacopoeias standard and requirements.



Options and Accessories :
Pharmasource 1000ml clear glass vessels with temperature resistance and water level marked.
                           1000ml amber color glass vessels with temperature resistance and water level marked.
Calibration tools with certificates complete in set box.
USP calibration kits with certificates [tablets and reference standard]

User Documentations :
Operational Manuals [in English]
IQ > Installation Qualification
OQ > Operational Qualification
PQ > Performance Qualification
